Manual Argon Gas Filling Equipment For Insulating Glass Processing

Name: Manual Argon Gas Filling Equipment For Insulating Glass Processing
Brand: Jinan Lijiang Glass Machinery
Price: 1 USD

China Manual Argon Gas Filling Equipment For Insulating Glass Processing wholesale

Brand Name : Jinan Lijiang Glass Machinery

Certification : CE & ISO9000

Place of Origin : Jinan City, Shandong Province, China

MOQ : 1 set

Price : Negotiated Price

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 15 sets per month

Delivery Time : 5-8 working days

Packaging Details : Wooden Cases Package

Name : Argon Gas Filling Equipment

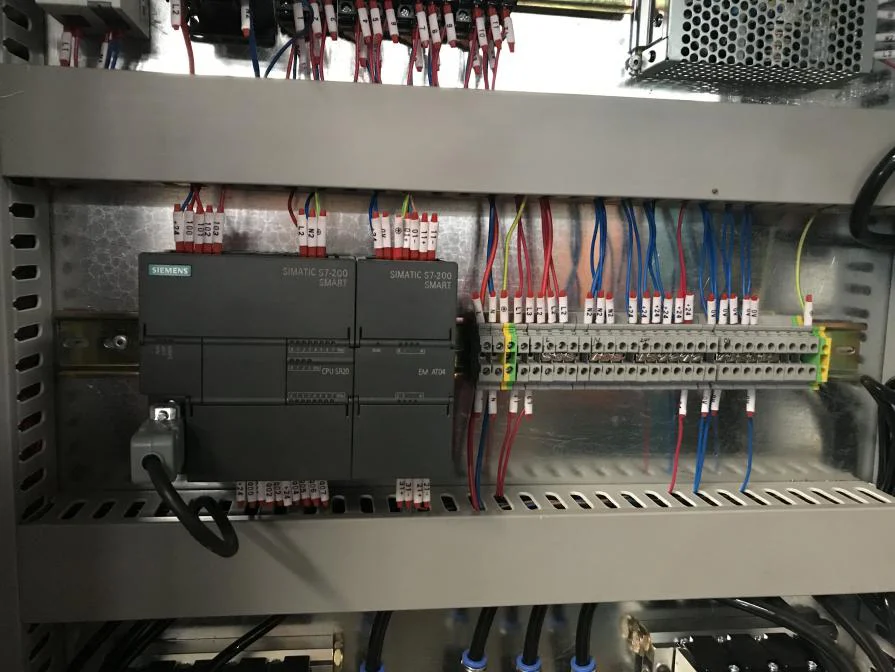

PLC : Siemens Brand

Inflation pressure : 0.4Mpa

Inflation flow : 60L/min

Inflation adjustment range : 0-80L/min

Gas source purity : 99.99 (argon)

Total power : 0.1Kw

Using environment : 0-40℃

Contact Now

Manual Argon Gas Filling Equipment used for Double Glazing Insulated Glass Hollow Glaszing Processing

Product Description

Manual Argon Gas Filling Equipment For Insulating Glass Processing

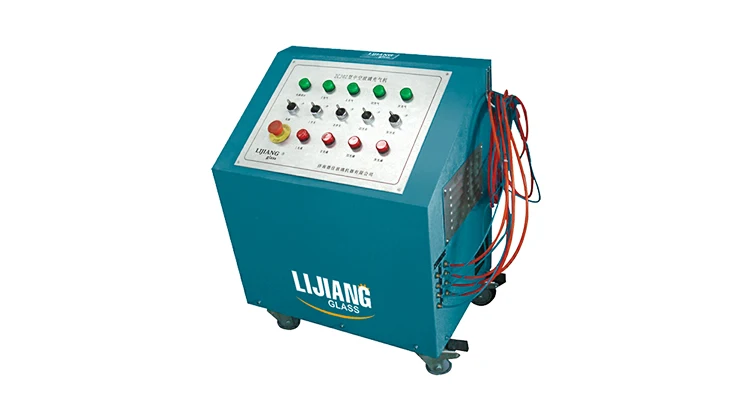

Argon gas filling machine LJCJ03


As we all know, filling the insulating glass with argon (inert gas) is very helpful to improve the insulation performance of the insulating glass and the sound insulation performance of the insulating glass. Filling with high-standard dry inert gas can prevent the internal oxidation of the insulating glass, especially to prevent the oxidation of low-E glass, clean the internal and external pressure imbalance of the insulating glass, and prevent the large pieces of insulating glass from sticking together.Main Function 1.Four pieces IGU can be gas filled at the same time within 20s (1m*1m glass). 2.Pressure alarm device:when the gas filling is up to adjusted value,it will alarm and stop automatically. 3.The filling process can display on the touch screen. 4.Gas content setting: the customer can set the argon content in the IGUs according to his own needs. 5.The whole filling process and argon gas content can be displayed on the screen, and the argon gas content can be observed in real time.  6.High effectively, allowing for four IG glass. 7.When the gas is full,it will alarm and stop automatically.

Main Technical Parameter

Item.	Spec.
Power supply	220V 50Hz
Total power	0.1kw
Dimension	700mm420mm700mm
Inflation pressure	0.4Mpa
Inflation flow	60L/min
Inflation adjustment range	0-80L/min
Gas source purity	99.99 (argon)
Argon gas source	Pressure 0.1Pa, the flow rate 0.01L / min
Using environment	0-40℃
No condensation, no water intrusion into the operation panel and electric control box.
Total weight	30kgs

Advantages & Features

Main Feature

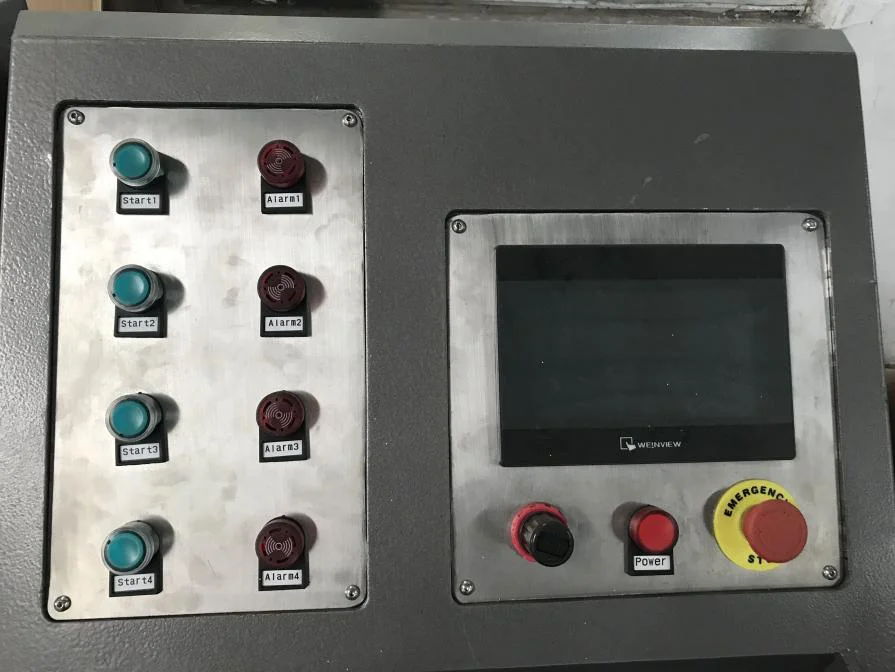

1. Inflate 4 pieces of insulating glass at a time2. Automatically display inflation status 3. Imported gas analyzer is used for gas source gas analysis with an accuracy of 99.99%. 4. Four-way inflation can complete the inflation of four insulating glass 5. The gas sensor imported from Japan can individually detect the internal gas of the hollow glass after each line is inflated 6. Reasonable mechanical design makes inflation more convenient
7. All sophisticated gas connection devices are imported from South Korea 8. The inflatable state light indication is obvious 9. The detection interface is designed ingeniously and fully detects the gas inside the hollow glass 10. The various indications of the equipment accurately guide the operator to use it correctly 11. This equipment is used to fill the interior of insulating glass with inert gas to improve the performance of insulating glass, such as heat insulation, sealing, sound insulation, and energy-saving. The gas purity analyzer imported from the United States and the gas sensor imported from Japan ensure the stability of the inflator. The humanistic appearance design makes the equipment beautiful and easy to operate.
