Vertical Glass Washing Machine For Washing And Drying Flat Glass
Vertical Glass Washing Machine:
LIJIANG glass washing machine has 3 sections: glass transfer section, washing and drying machine, inspection section.
Washing section:
1. It is made of stainless steel, the brush bearing is made of Harbin stainless steel, which is famous in China;
2.3 pairs of soft brush is equipped with 0.1mm brush wire;
3. Use European anti noise mode to reduce noise;
Drying section :
1. The front and rear extrusion wheels are powered to keep different sizes of glass can pass quickly and smoothly;
2. The new type air knife could adjusts the size of the air vent through the aluminum duck beak; reduces the number of adjusting screws, ensures that each screw is not loose, and avoids the resonance of the air knife.
3. The width of the air knife can be adjusted automatically according to the thickness of the glass.
| Max.glass size | 2000*2500mm |
| Min.glass size | 280*400mm |
| Glass thickness | 3-15mm |
| Materials | Stainless steel |
| Glass washing speed | 2-10m/min |
| Glass conveyor speed | 45m/min |
| Washing brushes | 3 pairs |
| Water supply | Water consumption:0.5t/h conductivity:40μs/cm |
| Air supply | Flow: 0.8m/min |
| Air pressure | ≥0.8MPa |
| Total power | 3P 380V 50Hz (Optional) |
Optional functions:
1. Maximum washing size : 2000mm*2500mm / 2500mm*3500mm / 3000mm*4000mm
2. Glass thickness : 3- 15mm / 3- 18mm / 3- 19mm
3. Brushes : 6 pieces ; soft brushes / hard brushes
4. Washing low-e glass is optional
5. Pre - washing machine is optional
6. Changing big power motor is optional
JINAN LIJIANG AUTOMATION EQUIPMENT CO.,LTD
Address: Block B 1307, Green Square, Huaiyin District, Jinan, China
Tell : 0086 0531-85960498 Fax : 0086 0531-87562846
Salesperson: Hermione (+86 18353163989 / +86 13001733235)
Email: sales01@lijiang-glass.com
Website : www.lijiang-glass.com / www.insulatingglassproductionline.com

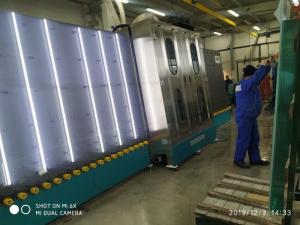

Glass washing machine in customer's factory:
Company introduce:
Jinan Lijiang Automation Equipment Co., Ltd specializes in the R & D and manufacturing of automatic insulating glass machinery, with a registered capital of 20 million RMB. Domestic friendly partners include nearly one thousand customers, such as North glass, Xinfuxing, Yaohua, etc. The products have been exported to Europe, the United States, the Middle East, Southeast Asia, South America,Romania, Bulgaria, Span and other countries (about 30 countries) of the world. There are about ten agencies, such as North America, South America, Europe, Southeast Asia, the Middle East, South Korea, etc. At the same time, we have set up branches in New Delhi, India. At present, the export of products accounts for more than 50% of the company's total sales.
LIJIANG’ new factory covers an area of 20000 square meters, has more than 100 employees, 6 people with middle and senior technical titles, 8 full-time technical R & D personnel, 3 production workshops. We have advanced production technology in the world, from raw material processing to assembly, machine testing and debugging, which can provide optimal CNC solutions for customers at home and abroad. Adhering to the enterprise tenet of "precision manufacturing, quality LIJIANG", we choose international famous brands such as Siemens of Germany and OMRON of Japan as our main suppliers, and our products are highly praised by customers at home and abroad.
Our products mainly include: IG line series; Automatic sealing robot series; Low-e film edge deletion machine; Spacer bending machine series; Butyl extruder machine series; Desiccant filling machine and other auxiliary insulating glass machines. About 20 products are widely used in customized insulating glass industry, industrial aluminum alloy, building curtain wall, high-speed rail, elevator and advertising industry.
In 2016, we won the title of Jinan Golden Seed Enterprise and government subsidy by virtue of the first fully automatic butyl extruder machine with six axis independently developed.
In 2018, we won the title of national high-tech enterprise. During this period, we cooperated with many famous universities and the 53 Research Institute of the Ministry of ordnance industry to develop high-tech products.
Our corporate vision:
To make glass processing simpler and more intelligent, to be a high cost-effective specialty in the glass machinery industry, to better feed back and serve our customers, employees and society with better products and better services, and to make our life better!
